Tungsten copper cap electrode, the bottom plate is provided with two positioning posts and a "Y"-shaped positioning groove, the electrode joint is a circular connecting piece, the ring is sleeved into the positioning post, the tail is embedded in the positioning groove, and the wire is from " The lower end of the Y-shaped positioning groove is led out, the positioning groove defines the displacement of the electrode joint, the positioning post passes through the electrode, the electrode, the electrode joint and the bottom plate are tightly combined, and the planar electrode is sandwiched between the insulated bottom plate and the cover plate.
More details of tungsten copper cover electrode, please visit http://www.tungsten-copper.com/tungsten-copper-electrode.html

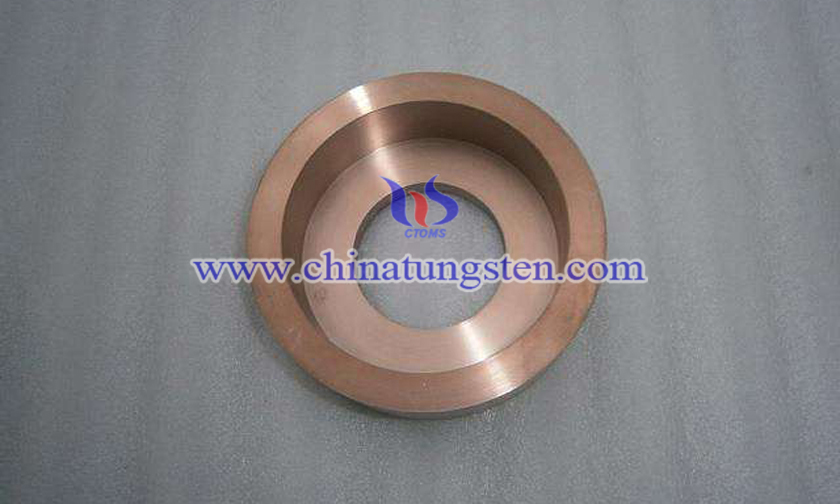

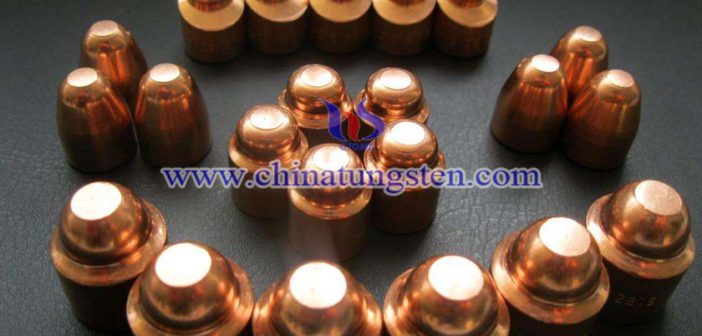

Tungsten Copper Cover Electrode Picture
Tungsten copper cap electrode has a through hole which is matched with the positioning post, and the through hole engages the cover plate and the bottom plate to ensure good contact between the planar electrode and the electrode joint of the cap. When it is necessary to replace the electric appliance, the positioning post on the bottom plate can be separated from the through hole in the cover plate, and the tungsten copper capping electrode can be used together with the planar electrode in the electric appliance.
