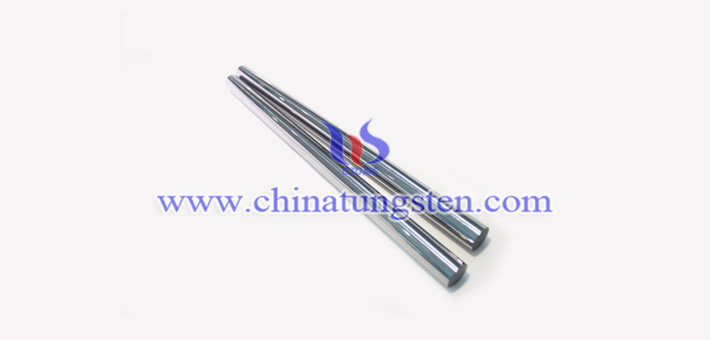

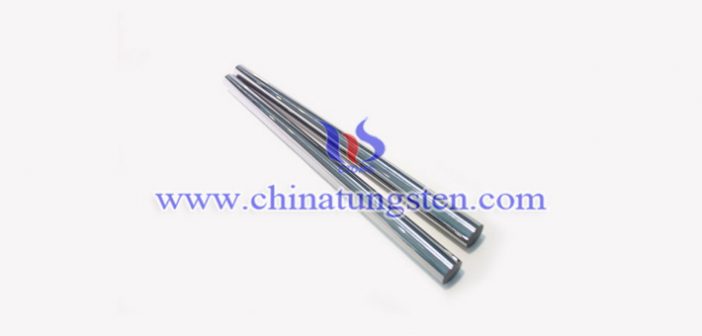

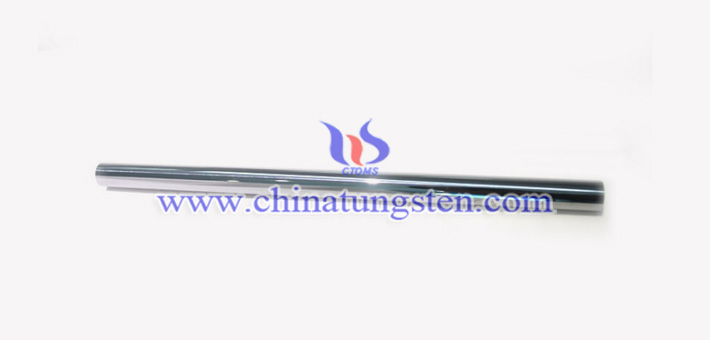

AMS 7725E class1 tungsten alloy cylinder has high melting point, good heat resistance, good corrosion resistance, high thermal conductivity, better electrical conductivity and strong X-ray absorption capacity. It is widely used in the production of high temperature parts, wear parts, shielding parts. It is made of Chinatungsten Online by metallurgical method of powder, ball grinding, pressing, sintering, and its quality is absolutely excellent and stable.
The properties of AMS 7725E class1 tungsten alloy cylinder are:
Matrix: 90% W
Density: 16.85~17.30g/cc
Hardness Rockwell Max: 32HRC
AMS 7725E: Class1 Type1
Ultimate Tensile Strength: 94 KSI and 648 MPa
Yield Strength (0.2% offset): 75 KSI and 517 MPa
Elongation: 2%
AMS 7725E: Class1 Type2
Ultimate Tensile Strength: 110 KSI and 758 MPa
Yield Strength (0.2% offset): 75 KSI and 517 MPa
Elongation: 5%
