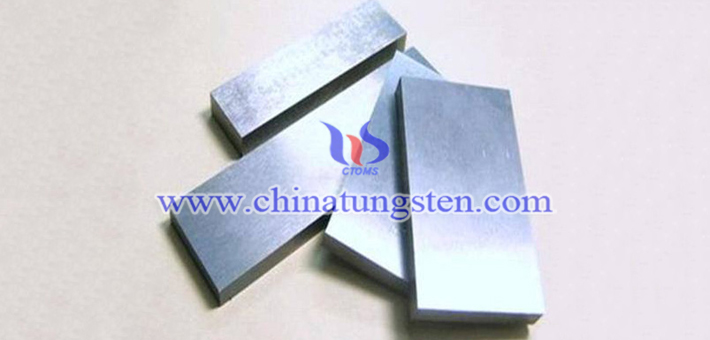

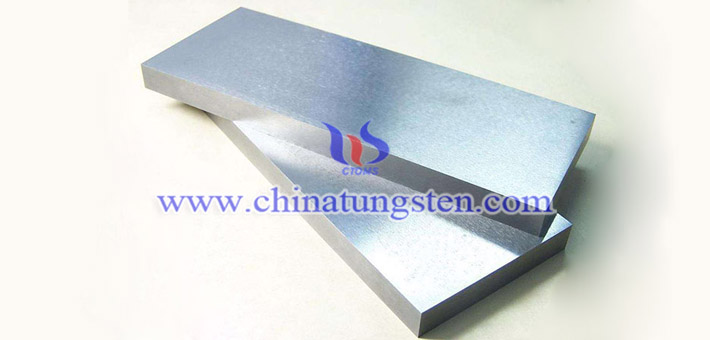

95W-3.6Ni-1.4Fe tungsten alloy plate has excellent strength and ductility, while another clear advantage lies in its non-magnetic characteristics. It is applied in manufacturing of collimator for nuclear medicine, nuclear research, geological prospecting and security inspection.
The properties of 95W-3.6Ni-1.4Fe tungsten alloy plate are:
Nominal W Content: 95 wt.%
Nominal Nickel Content: 3.6 wt.%
Nominal Iron Content: 1.4 wt.%
MIL-T-21014: Class 3
SAE-AMS-T-21014: Class 3
AMS 7725 B: NIL
ASTM B777-87: Class 3
Minimum Density: 17.75 g/cc
Typical Hardness: 29HRC
Modulus of Elasticity: 50x106 psi
Ultimate Tensile Strength Min.:120ksi
Yield Strength Min (0.2% offset): 80ksi
Minimum Elongation (1” Gauge Length): 6%
Magnetic Properties: Slightly Magnetic
