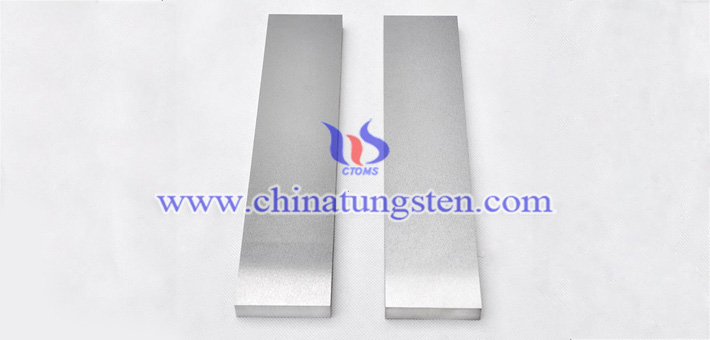

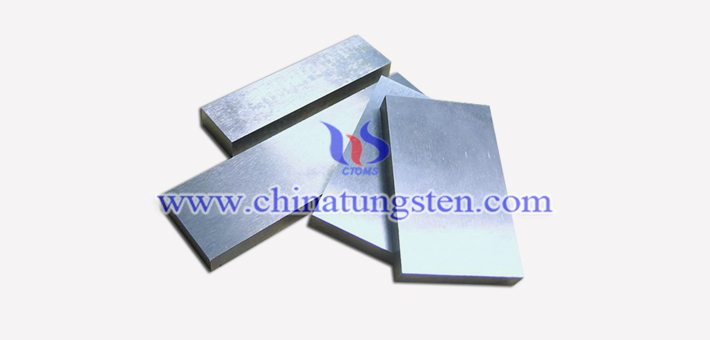

90W-7.1Ni-2.9Fe tungsten alloy plate offers exceptionally high strength and good electrical resistivity at very high temperatures. It is used as parts of electric light sources and electron tubes, structures of high temperature furnaces.
The properties of 90W-7.1Ni-2.9Fe tungsten alloy plate are:
Nominal W Content: 90 wt.%
Nominal Nickel Content: 7.1 wt.%
Nominal Iron Content: 2.9 wt.%
MIL-T-21014: Class 1
SAE-AMS-T-21014: Class 1
AMS 7725 B: 7725 B
ASTM B777-87: Class 1
Minimum Density: 16.85 g/cc
Typical Hardness: 28HRC
Modulus of Elasticity: 45x106 psi
Ultimate Tensile Strength Min.:120ksi
Yield Strength Min (0.2% offset): 80ksi
Minimum Elongation (1” Gauge Length): 10%
Magnetic Properties: Slightly Magnetic
