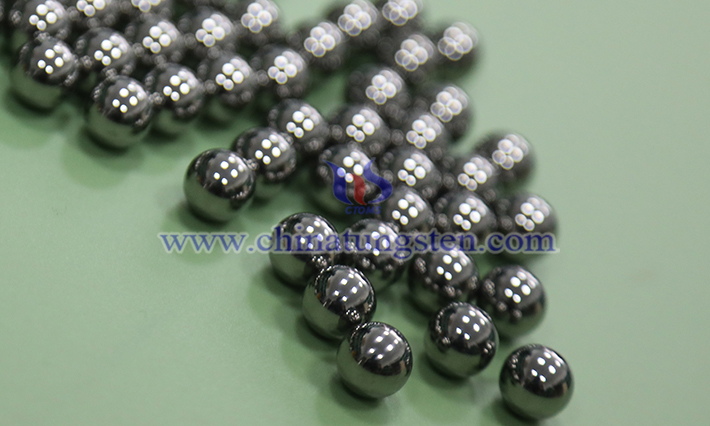

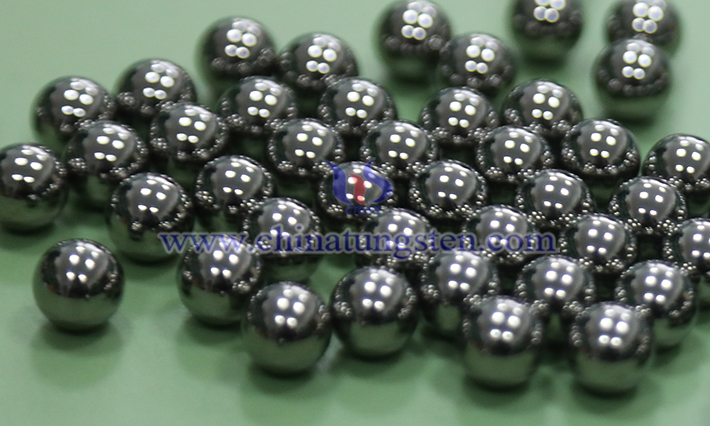

Tungsten Cemented Carbide Balls are primarily used as core components in valves, such as valve balls or sealing surfaces. Their high hardness, wear resistance, corrosion resistance, and stability under high temperatures and high pressures make them a key material for improving valve performance and lifespan, particularly in industries such as the oil, chemical engineering, and natural gas.
I. The Role of Tungsten Cemented Carbide Balls in Valves
1. Opening and Closing and Flow Control
Carbide valve balls rotate to quickly open and close pipeline media and regulate flow. Their spherical design minimizes flow resistance, friction during opening and closing, and operational shock, making them suitable for applications requiring frequent opening and closing or rapid shutoff of fluids.
2. Key Sealing Component
As the valve sealing surface, the carbide ball cooperates with the valve seat to form a bidirectional seal, maintaining zero leakage even in high-temperature, high-pressure, or corrosive media, ensuring safe and stable operation of the pipeline system.
II. Performance Advantages of Tungsten Cemented Carbide Balls
1. Wear and Corrosion Resistance
Tungsten Cemented Carbide Balls are made of tungsten carbide (WC) or titanium carbide (TiC) as a matrix, with binders such as cobalt (Co) and nickel (Ni). They achieve a hardness exceeding 90.5 HRA and boast wear resistance dozens of times greater than traditional steel balls.
In highly corrosive media such as sand, wax, and gas, their corrosion resistance significantly outperforms ordinary metals, extending valve life.
2. High-Temperature and High-Pressure Adaptability
Tungsten Cemented Carbide Balls can withstand extreme operating conditions, such as deep-sea drilling (high-pressure drainage wells), high-temperature pipeline systems, and even the long-term high-pressure environments of buried oil and gas pipelines.
The specially designed V-shaped opening structure of the valve ball also enables flow regulation, adapting to complex operating conditions.
3. Bidirectional Sealing and Automatic Positioning
The spherical closing element can withstand high pressure differentials when closed and features an automatic positioning function, ensuring precise sealing surfaces and preventing leakage.
The bidirectional sealing design ensures stable valve performance in both forward and reverse flow, enhancing system reliability.
III. Specific Applications of Carbide Ball Valves
1. Oil Drilling and Deep-Sea Drilling
Carbide valve balls are core components of oil well pumps, requiring long-term operation in harsh environments such as sand-laden and heavy oil wells. Their high hardness and corrosion resistance effectively resist sand abrasion and chemical corrosion, ensuring stable sealing performance in oil well pumps.
Valve balls for deep-sea drilling pumps must withstand high pressures and low temperatures, and carbide materials can meet these extreme operating conditions.
2. Chemical and Natural Gas Pipelines
In corrosive media pipelines, the bidirectional sealing structure of carbide ball valves prevents the leakage of toxic or flammable gases, ensuring production safety.
Full-bore welded carbide ball valves are suitable for buried oil and gas pipelines. Their wear resistance reduces maintenance frequency and lowers operating costs.
3. Low-Temperature and High-Temperature Industrial Systems
In low-temperature installations (such as liquefied natural gas pipelines), the low-temperature toughness of carbide ball valves prevents material embrittlement. In high-temperature and high-pressure pipelines, their thermal stability ensures long-term reliable operation.
